H-frame laboratory benches work bench laboratory furniture school physics lab table with sink and cabinet

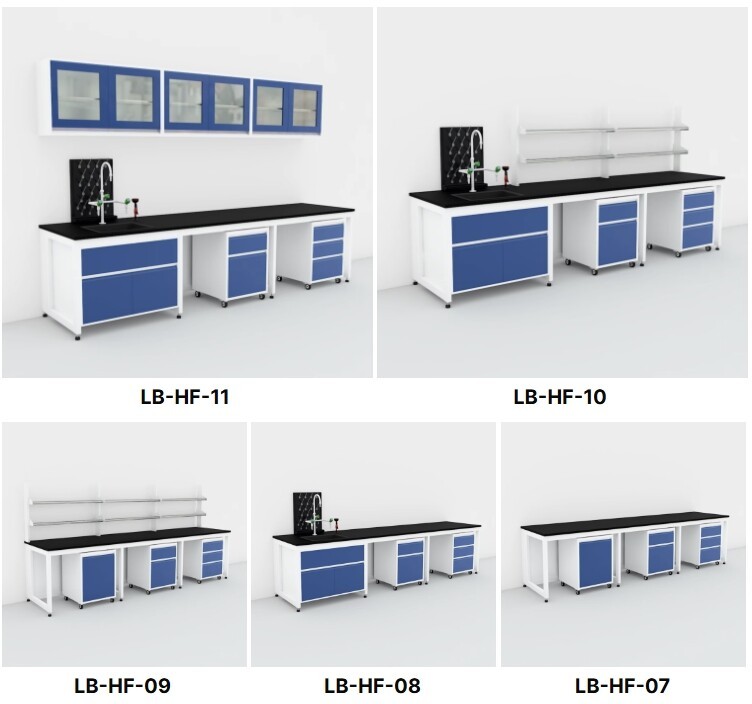

H-Frame/Modular Wall Bench
The H-Frame/Modular Lab Bench is supported by a solidH-Frame steel frame, connecting the upper and lowercabinet units
and the countertop. Optional mobile cabinet,no cabinet and suspended cabinet structure.H-Frame Lab Bench allow lab personnel
to easily reconfigure or customize lab layouts, and can be recreated usingcabinet modular unit for a variety of layout.
Countertops
(1) Phenolic Resin countertop: 12.7mm (Edge banding and Thicken to 25.4mm)/16~30 mm thickness
(2) Epoxy Resin countertop: 16/19/20/25mm thickness
(3) Ceramic countertop: 20mm thickness
(4) Trespa countertop: 13/16/19/20/25mm thickness
(5) Granite/Marble countertop: 20mm thickness
Cabinet&Accessories
(1) Cabinet: 1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating
and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature. and the surface is
smooth, with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound
insulation material. (2) Connecting rod: The whole adopts 40*60*1.5mm thick high-quality cold-rolled rectangle tube, the steel
surface is treated, phosphating and other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high
temperature, and the surface is smooth. (3) Handle: Non-welded linear handle/C-shaped handle/Insertion Aluminum alloy handle. (4)
Rail: DTC 16-inch three-section silent rail. (5) Hinge: DTC 105°/175° buffer hinge/stainless steel hinge. (6) Footing: Use
laboratory-specific adjustable feet with an adjustment range of ≥35mm, strong bearing capacity, the balance of the Lab bench can
be adjusted.y
Option Cabinet Unit
①Wooden Cabinet Unit:
The cabinet body thickness is 15mm, the door and drawer panels are made of 18mm thickness high-quality environmentally
friendly double-face MDF/melamine board, and the edges are sealed with 2mm thick PVC edge strips. The edges are firm, clean,
and free of burrs, the bond is firm.
②Steel Cabinet Unit:
1.0mm full-thickness high-quality cold-roll steel sheet is used as a whole; the steel surface is treated, phosphating and
other processes, and then electrostatic powder coated with epoxy resin, cured at 220°C high temperature, and the surface is smooth,
with a thickness of up to 1.15mm~1.2mm. The cabinet door is double-layered inside and outside, filled with sound insulation material.
DESIGN PROCESS
Step1:Designed to prepare
According to the type of customer's laboratory, determine the required lab furniture and equipment (ventilation, purification and cleaning equipment etc.).
Step2: Preliminary layout
Design the Lab layout/plan according to the internal dimensions of the lab, and determine the size and location of the lab furniture and equipment.
Step3:Comfirm 3D drawings
Design 3D drawings according to the Lab layout/plan,customers can under stand the lab layout more intuitively and evaluate the rationality of the laboratory.
Step4: Rendering drawings
Design renderings drawings according to 3D drawings. The customer gets the final drawing of the laboratory and evaluates the appearance of the laboratory
360-DEGREE SERVICE:
VOUPLUS built up a professional engineering team to provide perfect service and the most perfect project solutions for bothengineering customers and brand store customers.The engineering team is for bidding project,plan design,configuration,on site measurement,receiving report,and follow-up service etc.Project cases are from all warks of life such as government,medical institutions,education system,hotel,banking corporation etc.It is also our responsible to provide professional service to help brand store clients build strong sales team by provide training courses,that's why our clients choose us for the past 15 years.
The Service Philosophy: Customer First
Pre-sale Service:
VOUPLUS insists in putting professional people into the right position.Aiming to create a harmonious working environment,our engineering team provide professional plan design,the most reasonable space configuration,and then doing follow-up works to clients.
Sales Service:
We are a professional consulting team to help you choose the appropriate furniture and give suggestions and the detailed furniture maintenance principles.
After-sales Service:
Products under 3 year warranty and maintenances services.Our after-sales service center is responsible for handling customer consultation,complaints,maintenance and emergency service and goodwill visit etc.Under 3 year's guarantee,besides the human factor,the factory will provide new item to customer if the product failed to use after maintenance.
Q1. Can I ask for a sample before place an order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. Yet for consideration of saving postage, we also provide detailed pictures and other documents you require to smooth your concern as an alternative solution.
Q2. Can I have a visit to your factory?
Sure, we have our factory in GuangZhou, China.Only 12 km away from Guangzhou Baiyun International Airport. If you want to have a visit to our factory,please contact us to make an appointment. Besides showing you around our factory, we can also help you with booking hotel, picking up at the airport, etc.
Q3. What is the payment term of your factory?
Standard product，Normally in TT 30% deposit, 70% balance before loading; L/C; OA; trade assurance acceptable. 50% deposit for customized products.
Q4: What about the lead time?
Standard product needs 5-7 work days, customized product time needs 20 days; mass production needs around 10 days.
Q5: I am a small wholesaler, do you accept small order?
Yes, of course. The minute you contact us, you become our precious potential customer. It doesn't matter how small or how large your quantity is, we are looking forward to cooperating with you and hopefully we would grow together in the future.
Q6: Is it possible to put my logo on products?
Yes. You could send your fabric logo to us, and then we can put your logo chairs. Additionally, we can print your logo on boxe.
Q7. How is your quality control?
Quality is our culture. We have a professional quality testing center that conducts chemical and physical tests on raw materials,and only qualified to produce. Professional QC team with 50 members to test the products and packages before delivery.We will control the quality of the goods during all the mass production. we guarantee our customer 100% satisfaction on all our products.Please feel free to feedback us immediately if you are not satisfied with Johor's quality or service, if the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure most accessories. In some special case, we will give a discount as a solution.
Q8. How is your Design Ability?
We have a design team of 12 people,The designer has over 10 years of industry experience and graduated with a major in furniture product design,The Medical Furniture style and hospital space layout are all independently designed and developed by our design team.
Q9: Can you give warranty of your products?
Yes,we extend a 100% satisfaction guarantee on all items.we may give the gurantee 5 years.
Q10: Can you do customization?
We have a strong development tool to map custom capabilities.
